Booster

Model：DZY-6/40

Power：22kW

Product desciption

The supercharger series is an ideal choice for large-displacement medium-pressure systems. The products feature stable and reliable performance, and can boost the pressure from 0.8 - 1.0 megapascals to 3.0- 6.0 megapascals.

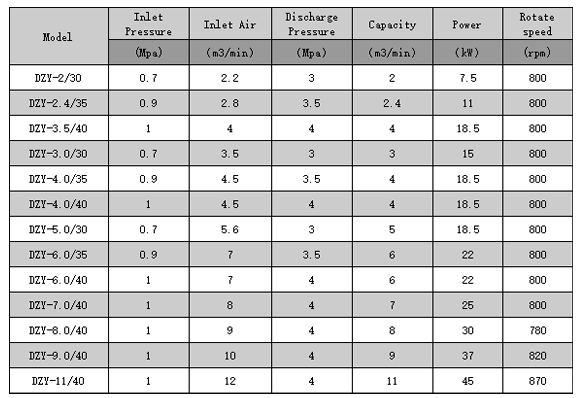

Model	Inlet Pressure	Inlet Air	Discharge Pressure	Capacity	Power	Rotate speed
Model	(Mpa)	（m3/min）	（Mpa）	（m3/min）	（kW）	(rpm)
DZY-2/30	0.7	2.2	3.0	2.0	7.5	800
DZY-2.4/35	0.9	2.8	3.5	2.4	11.0	800
DZY-3.5/40	1.0	4.0	4.0	4.0	18.5	800
DZY-3.0/30	0.7	3.5	3.0	3.0	15.0	800
DZY-4.0/35	0.9	4.5	3.5	4.0	18.5	800
DZY-4.0/40	1.0	4.5	4.0	4.0	18.5	800
DZY-5.0/30	0.7	5.6	3.0	5.0	18.5	800
DZY-6.0/35	0.9	7.0	3.5	6.0	22.0	800
DZY-6.0/40	1.0	7.0	4.0	6.0	22.0	800
DZY-7.0/40	1.0	8.0	4.0	7.0	25.0	800
DZY-8.0/40	1.0	9.0	4.0	8.0	30.0	780
DZY-9.0/40	1.0	10.0	4.0	9.0	37.0	820
DZY-11/40	1.0	12.0	4.0	11.0	45.0	870
